Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Shunda
সাক্ষ্যদান: CE
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Packaging Details: wood case
Delivery Time: 40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS /MONTH
বিস্তারিত তথ্য
production: paper cup making machine material: single and double PE coated paper
output: 220/380v 60HZ 12KW cup size: <16oz
speed: 100 pcs/min cup thickness: 135-450 gram
machine size: 2.5*1.8*1.7m air compressor: 0.5MPA
লক্ষণীয় করা:

disposable cup making machine

,

paper cup manufacturing machine


পণ্যের বর্ণনা



Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot air





Advantage:



1. Two sets of Leister hot air system original imported from Swiss guarantee the stability of heating.

2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity track system can checking the every part and report.
4.Open cylindrical divide locating,heigh precision.Gear working make the high speed and stablity.

5.Automatically Oil lubrication system,labor can add oil every 8 month.

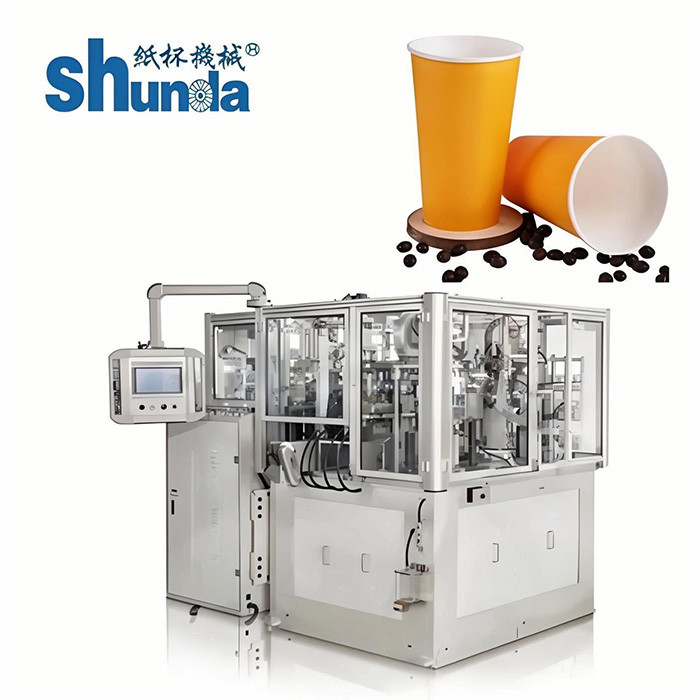

Product Pictures of automatic paper cup machine



Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air 0





Details:

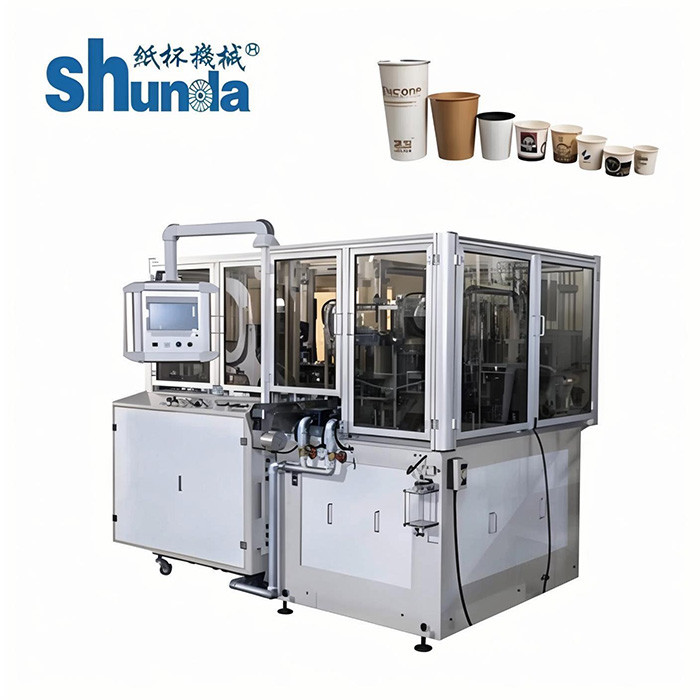

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air 1



Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot Air 2





MODEL

                   Paper Cup sleeve machine SHUNDA-80A

SPEED

                   100PCS/MIN

CUP SIZE

                    < 16OZ

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC&HOT AIR

OUTPUT

                    380V/220V,60HZ,11kw

AIR COMPRESSOR

                    0.5 M³/Min

NET WEIGHT

                    4 TONS

MACHINE SIZE

                    2500  ×1800 ×1700 MM

COUNTER SIZE

                    900 ×900 ×1760 MM

FOB SHANGHAI

                    42000 USD/SET





Paper Cup Making Process:



1. Paper Making Machine make paper roll.

2. Flexo Printing Machine or Paper cup Printing machine to Paper roll

3. Paper die-cutting machine to make paper fan which is paper body

4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing

5. At the same time, the paper bottom automatic cut to round type and sent to the mould

Together with paper fan.

6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup

7. Sealing the bottom and body strongly, Knurling the bottom.

8. Discharging finished paper cup automatically from moulds. Sending to the collector and be

collected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so

easy to collect.





After-sale



We will send the guide book and CD with machine together,direct you how to install,adjust and maintain the machine.You may contact us any time for any question,it will be our pleasure to serve you.We support

3 years warranty on machinery,one year on electronic,standard warranty on EVERGREEN ultrasonic.





Test run of the machine&training



We will adjust the machine well until perfect before the delivery, ensure the machine has the perfect performance!

You can come to our factory to study how to run the machine,or we can dispatch technologists to your factory, guiding installation, adjustment for a period.The training for free ,but the other fee must be paid by customer.
